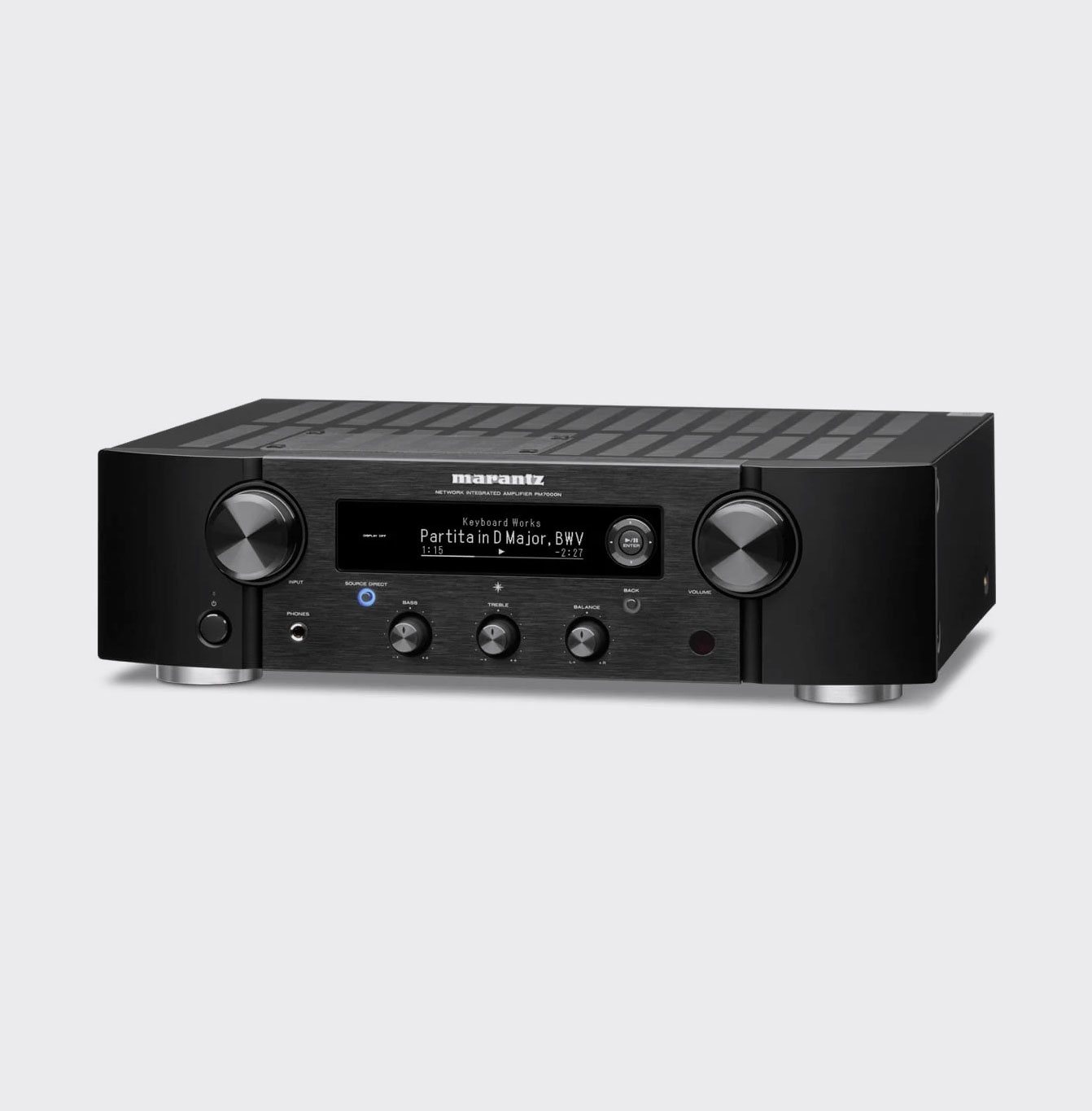

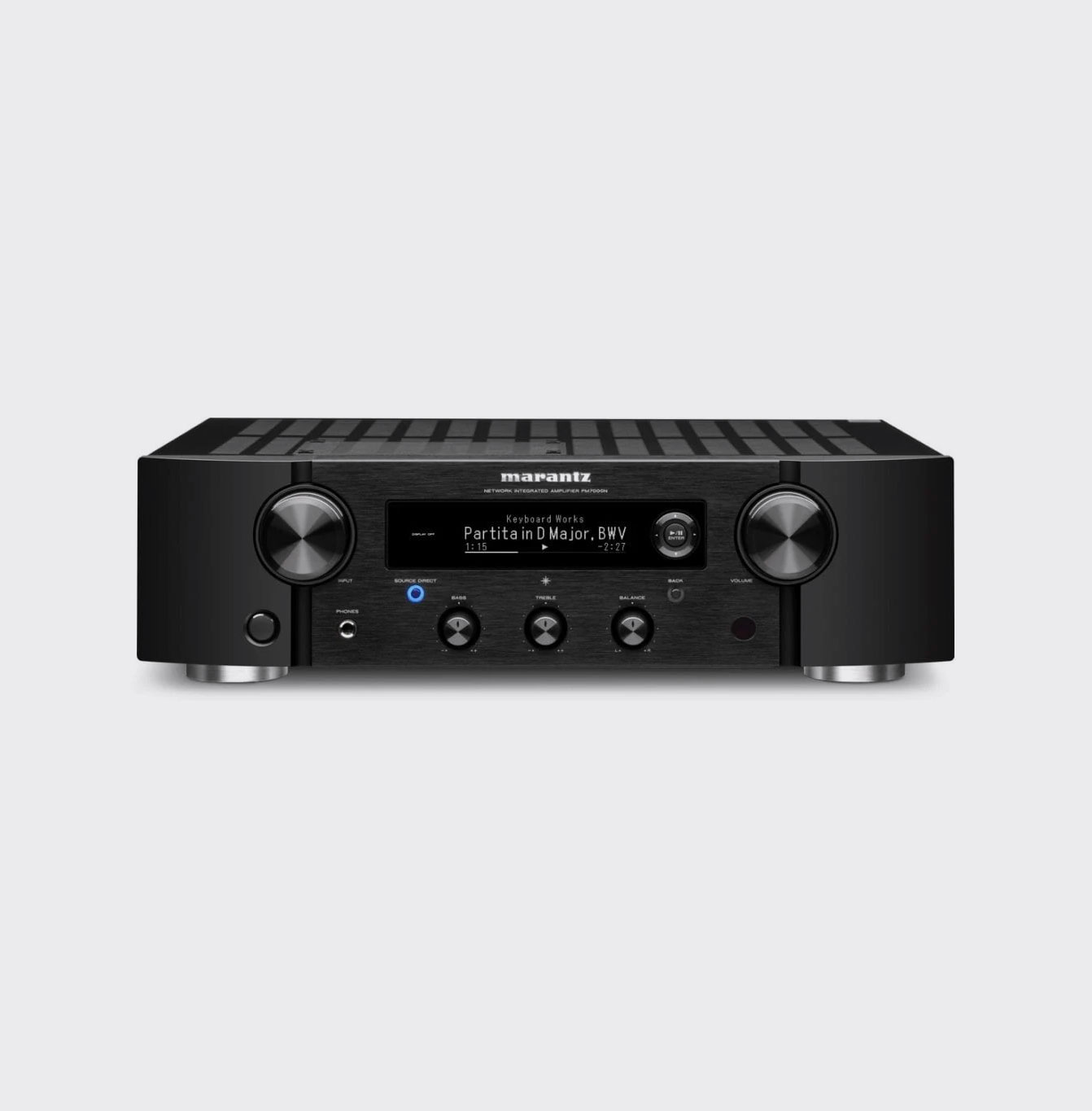

Specificaties van de Marantz PM7000N

Soort

Stereo Receiver

Aantal kanalen

2

Uitgangsvermogen (per kanaal RMS)

60W bij 8 Ohm 80W bij 4Ohm

Ingangen

3x Analoog
1x Phono MM
2x Optisch
1x Coxiaal
1x USB-A
1x Netwerk
1x Remote control

Uitgangen

1x Sub Pre Out
1x Analoog Out
1x Hoofdtelefoon
1x Remote control


Afmetingen (H x B x D)

125 x 440 x 379

Gewicht

10.3 kg

Kleur

Zwart, zilver goud

Overige

Kanalen 2

Current Feedback-topologie [o]

Full balanced circuitry architecture [-]

Double Mono Power Amp construction [-]

Phono EQ: Standard / Marantz Musical / Marantz Musical Premium [o]  /  [-]  /  [-]

Digital in: USB-B / optical / coaxial / USB-A [-]  / 2 / 1 / 1

Sample Rate Digital In 192 kHz / 24-bit

USB-A: DSD / WAV / FLAC / AIFF / ALAC <=5.6 / 192 / 192 /  [-]  / 192

USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 [-]

USB-B PCM sample rate [-]

DAC chip AK4490

Asynchronous mode rear USB [-]

Bit-perfect transmission [-]

Ground isolator for DAC Mode operation [-]

Tuner: DAB / DAB+ / FM (RDS) [-]

Bluetooth / aptX / NFC [o]  /  [-]  /  [-]

Audiostreaming van PC [o]

Wi-Fi / Wired LAN [o]  /  [o]

Internetradio [o]

AirPlay 2 [o]

Windows Play to [o]

Spotify Connect* / Tidal* / Deezer* / others * [o]  /  [o]  /  [o]  /  [o]

Amazon Prime Music* / Pandora* [o]  /  [o]

HEOS Multiroom and Streaming [o]

Voice Control - Works with Amazon Alexa [o]

Voice Control - Google Assist / Apple Siri [o]

Voice Control - Microphone built-in [-]

DSD-Audio network streaming [o]

Lossy formats: MP3 / WMA / AAC [o]  /  [o]  /  [o]

Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF [o]  /  [o]  /  [o]  /  [o]  /  [-]

Gapless Playback [o]

Remote APP: iDevice / Android [o]  /  [o]

Analog mode [-]

HDAM-versie SA3, SA2

Netvoedingstransformator: Ringkern/EI [o]  /  [-]

Hoogwaardige audiocomponenten [o]

Speciaal ontworpen componenten [o]

Symmetrische printplaatindeling [o]

Geëxtrudeerde aluminium koelelementen [o]

Verkoperd chassis [-]

Drievoudige toon-instelling (Bass/Mid/Treble) [-]

Balans/bass/treble/loudness [o]  /  [o]  /  [o]  /  [-]

Marantz Musical Digital Filtering [-]

Linear Drive Power Supply [o]

Lineaire volumeregeling [o]

BI-AMP en meerkanaals optie [-]

Shottky diodes [o]

Bufferversterking ingangen (alle ingangen/alleen CD) [-]  /  [-]

Afscherming systeemelementen: koper/metaal/geen [-]  /  [-]  /  [o]

Dubbelgelaagde bodemplaat [-]

Low Noise OELD display [o]

Ruisarm LCD-scherm [-]

Source Direct [o]

Power Amp direct [-]

5 mm aluminium bovenplaat [-]


Audio-ingangen 4

Digital in: USB-B / optical / coaxial / USB-A [-]  / 2 / 1 / 1

Phono-ingang: MM/MC [o]  /  [-]

Audio-uitgangen 1

Gebalanceerd in / uit [-]

Voorv. uit/Hoofd in subwoofer /  [-]

Power Amp direct [-]

HDMI: inputs / outputs [-]

Vergulde cinch [o]

Luidspreker A / B [-]

Speaker Terminals Marantz SPKT-1+

Aantal aansluitingen 2

D-Bus [o]

Floating Control Bus-systeem (2 x 3,5 mm monostekker) [-]

Hoofdtelefoon uit [o]

Headphone Gain Control (low / mid / high) [-]

Uitgangsvermogen (8/4 Ohm RMS) 60 W / 80 W

Frequentierespons 5 Hz-100 kHz

Totale harmonische vervorming 0.02 %

Dempingsfactor 100<

Ingangsgevoeligheid: MM 2 mV / 47 kOhm

Ingangsgevoeligheid: MC [-]

Signaal-ruisverhouding: MM/MC 87 dB /  [-]

Ingangsgevoeligheid: hoog niveau 200 mV / 20 kOhm

Ingangsgevoeligheid: Gebalanceerd hoog niveau [-]

Signaal-ruisverhouding: hoog niveau 115dB(2V input)

Ingangsgevoeligheid: Power Amp Direct IN [-]

Signaal-ruisverhouding: Power Amp Direct IN [-]

Metalen voorpaneel [o]

Energieverbruik in W 220

Verbruik tijdens stand-by in W 0.3

Automatische uitschakeling [o]

Afneembaar netsnoer [o]

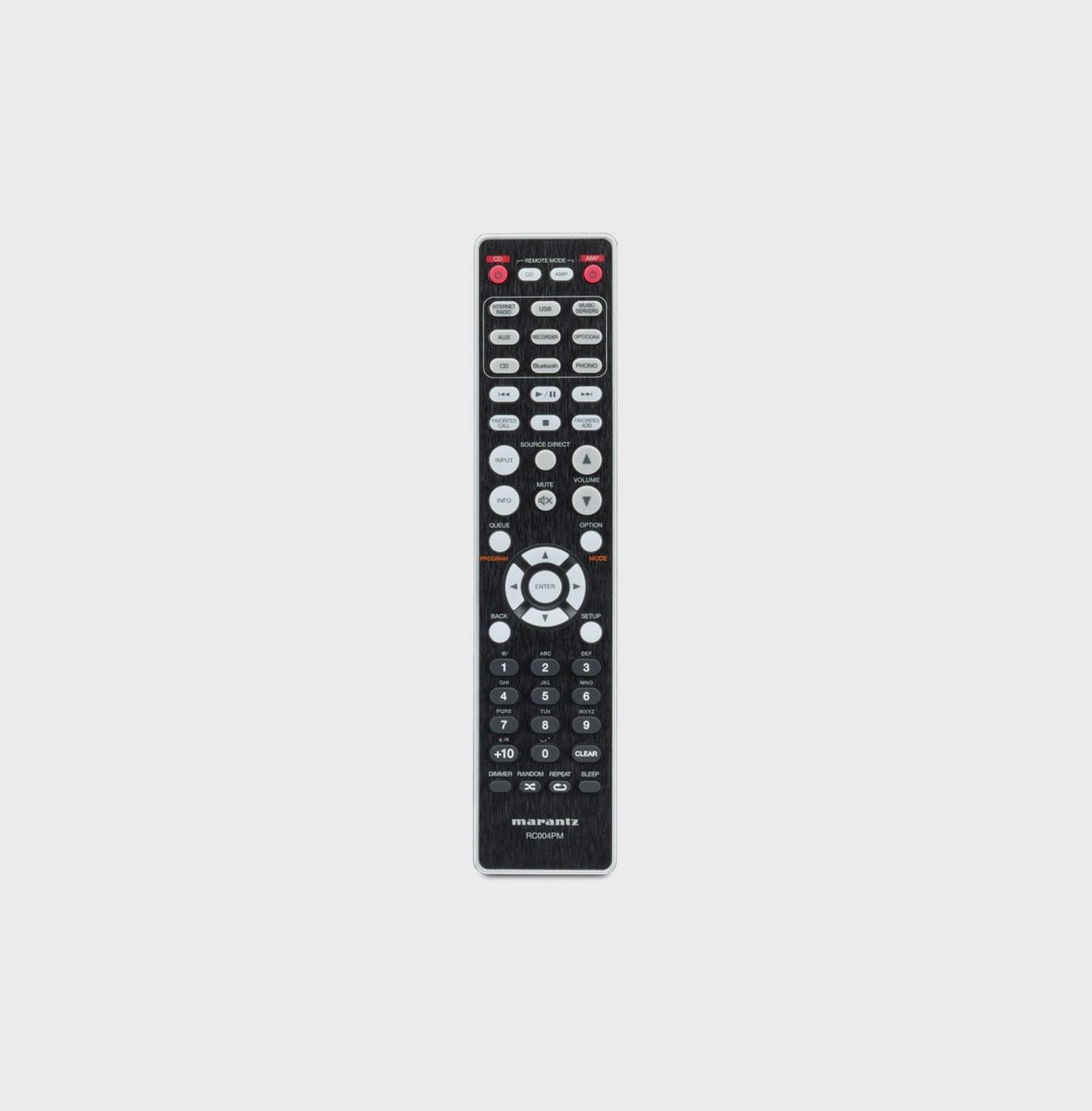

Afstandsbediening RC004PM

System Remote-functie [o]

Garantie

2 jaar
